APEX offers a wide range of Stainless Steel Pipes & Tubes including welded/seamless straight, U-tubes and coils, welded & seamless pipes, large dia EFW pipes and rectangular and square sections in various finishes and grades. The company is perhaps one of the very few worldwide to offer as wide a product range.


CONDENSER & HEATER TUBES

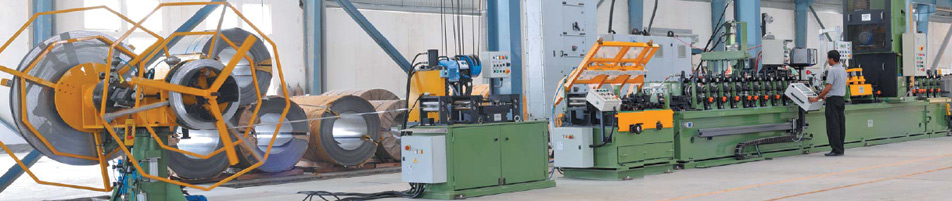

APEX manufacturers specialty welded tubing for heat transfer applications like condenser, feedwater heater, LP heater and HP heater etc. on its state-of-the-art, PLC run tube mills. All operations like forming, seam welding, bead rolling, sizing, OD seam polishing, bright annealing, straightening, NDT checking, dimension control, continuous marking and cut-off are done online and automatically. These fully integrated and perfectly synchronized processes result in a very high and consistently good quality of products. Whether it is the surface finish, dimensional accuracy or the welding integrity, the tubes made on these mills meet the highest quality standards. The customers are able to rely on these products for their critical usages with complete peace of mind.
  • Condenser and Heater Tubes Product Range

    TYPE
    ODHeat Exchanger/ Condenser Tubes Straight or U-Bent
    OD 5/8” to 2” (15.88 to 50.8mm)
    WALL THICKNESS 0.5 to 4.0mm
    LENGTH Upto 30 mtrs; U tubes as per customers' requirements
    SPECIFICATION ETC. ASTM A249, A269, DIN 17455 & 17457
    WELDING METHOD TIG, Laser Welding used
    OTHER In Bright Annealed condition. Finish BA; Polishing done on request.

APEX has a sophisticated 'U bending facility’ to cold bend tubes of 15.87mm OD to 25.4mm OD and up to 3.05 mmwall thickness with 25.4mm to 1000mm centerline radius and with leg length up to 14meters.
